Barefoot, forefoot strike and heel strike - a biomechanics summary

Comments: 7 Comments
Published on: March 19, 2020

Audience: Runners and therapists

Purpose: To summarize the biomechanics of running strike pattern and shod conditions

I feel like in the blogosphere and the popular running media that there is a love affair with all things barefoot.  Barefoot running is associated with forefoot striking and there appears to be changes in the biomechanics associated with alteration in running form when compared with heel striking.  However, the research gets presented as if it is very neat in tidy when in fact it is quite murky.  This post is a work in progress.  It attempts to summarize some of the work comparing barefoot running with shod running and the work that compares forefoot striking and rearfoot striking while running in shoes.  I hope that I have conveyed that the results are quite conflicting.  Hence, what a pain it was to try to summarize this work.

This post will be updated consistently. Please view it as a work in progress.

A. Changes when going from shod to barefoot running

Kinematic changes

-there is a trend to shift  from rearfoot striking to landing more on the midfoot or forefoot

-an increase in step frequency (e.g. more steps per minute)

-a decrease in step length (Divert et al 2008, Squadrone 2009)

-the foot is more plantar flexed (i.e. the toes point down at contact) and there is a greater degree of ankle motion (Pohl and Buckley 2007, Lieberman et al 2010)

-a decrease in the amount of peak pronation or calcaneal eversion (Morley et al 2010) which is most evident in runners who pronate a great deal.  Going barefoot decreases peak eversion from 10.3 degrees to 6.7 degrees in moderate pronators and from 14.8 degrees to 9.2 degrees in super pronators.

-the time it takes to get to maximal calcaneal eversion decreases in barefoot

-total eversion distance is increased with barefoot running.  Even though there is less pronation the foot starts in a greater degree of inversion when barefoot.  Therefore, the heel travels a greater distance when striking the ground to reach maximal eversion/pronation.



Force or Impact changes

-a decrease or complete reduction in the impact peak (aka. impact transient) when the foot strikes the ground but the push off peak is unchanged. A shod heel strike vertical ground reaction force can be seen in this video from Dr. Lieberman:



In the following graph notice how the first “bump” is lower in the barefoot and forefoot condition when compared with the rear foot shod condition (Divert 2008).



Impact loading from Divert (2008)





































Ummm, is the initial impact transient eliminated with Barefoot running?



The initial impact transient is not always eliminated with barefoot running. While, other researchers (Lieberman 2010) show that the initial impact peak or impact transient is completely washed out rather than just decreased this is not always seen. Dr Lieberman’s work is fantastic and his argument is beautifully laid out.  His website is here (http://www.barefootrunning.fas.harvard.edu/4BiomechanicsofFootStrike.html)

He also provides this video showing the impact transient loss when running barefoot and forefoot striking.





In the study by Divert (2008)  three out of the 12 subjects continued to demonstrate an impact transient. This difference may be due to the fact that other studies investigate youths who have always run barefoot while in the above graph (from Divert 2008)  the subjects were just learning to run barefoot and may have not run a sufficient number of steps for the body to adapt and modify its kinematics.   In effect, the sample used in the above study may have  not had enough time to learn how to run barefoot to eliminate that impact peak.

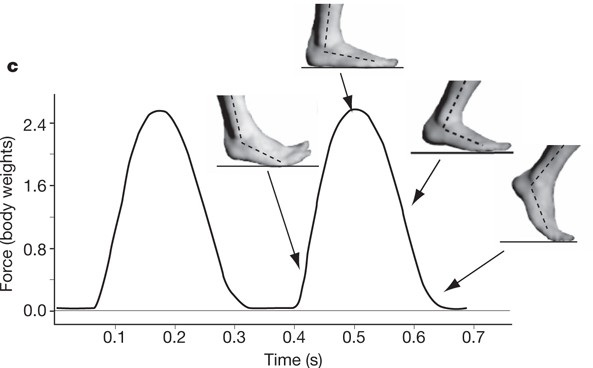

Nonetheless, below is a graphic by Dr. Lieberman showing the loss of the impact transient with barefoot forefoot striking

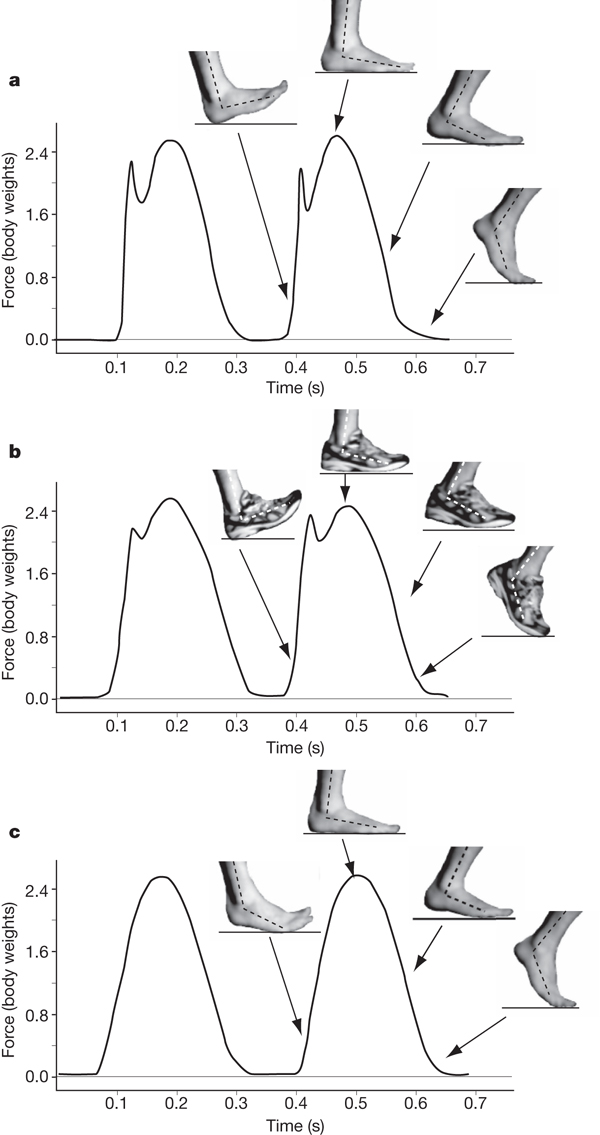

Impact loading from Lieberman (2010)































In contrast to Dr. Lieberman’s work, other studies have also looked at habitually barefoot runners and have NOT found a complete loss of the impact peak, albeit a reduction was found when running barefoot or in Vibrams versus a standard shoe. Squadrone (2009) compared barefoot, shod and Vibram wearing runners in athletes who have had extensive experience running barefoot (3 of them having completed a marathon barefoot).  In the following graph notice how the impact transient is still greatest with shoes, decreases with barefoot and is most modified with Vibrams (VF).  Most importantly, notice how the impact transient still exists.  These authors did not calculate the slope of this impact transient so it can not be directly compared with the work of Lieberman et al (2010).

Impact loading from Squadrone (2009)






































How can this impact transient still exist in minimalist or barefoot runners?

One difference between Lieberman’s group and Squadrone’s group may be the degree of plantar flexion in the ankle that occurs at footstrike in both groups.  In Squadrone’s group the ankle is at 94 degrees - this means about 4 degrees of plantar flexion.  In Lieberman’s group the plantar flexion in habitually barefoot Kenyan youths is around 14 degrees.



This is an important point which leads to a main thesis of this article.  It implies that barefoot or minimalist running alone is NOT A SUFFICIENT condition to obliterate your impact transient during foot strike.  In fact, if you run barefoot in a heel to toe fashion you will see an increase in the impact transient.  This was seen in the work by De Clercq (2000) who compared barefoot versus shod but made everybody still run with a heel strike.  This was found a decade later by Dr Lieberman.  De Clerq found this:

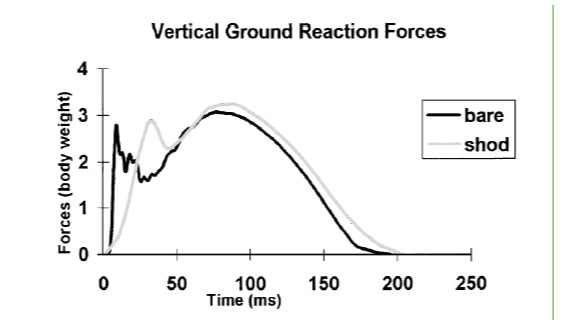

Impact loading from De Clercq (2000)





























Not to be too confusing but the above authors also measured foot dorsiflexion at impact and found an ankle angle of around 94 degrees (4 degrees of plantarflexion) with a sole angle around 12 degrees (I believe the sole angle is the angle of the entire foot relative to the flat ground).  Zero degrees would be flat while 12 degrees means the toes are pointing up relative to the ground (this is my interpretation, it was not explained in the article). This ankle angle in the barefoot condition is similar to the Squadrone’s study of 94 degrees yet we see an impact transient as well as a greater rate of force development in the barefoot condition.  My interpretation here is that while the ankle was slightly plantarflexed the heel still came down first (i.e. the sole angle was still pointing up).  I don’t know what the sole angle was in the Squadrone study but it  certainly might help explain the difference between studies.

Bottom line about barefoot.

Obviously barefoot running is no panacea for eliminating an impact transient.  Additionally, there are other factors associated with barefoot running (e.g Kinematic variables: stride rate, stride length, ankle range of dorsiflexion, range of pronation) that may influence many of the kinetic variables (e.g. impact transient, ground reaction forces).  And most importantly how does it relate to injury and performance?

So lets look at these other variables.  Very simply, barefoot running seems to shift someone from being a Heel striker to being a forefoot striker.  A small amount of research has investigated the differences while running in shoes with a rearfoot versus a forefoot strike pattern.

Can changing your foot position at foot strike influence Kinematics and Kinetics?

They sure can, please read more.  Dr Irene Davis has been involved in much of this research but there is surprisingly little published.  Dr. Davis’ published work often cites her unpublished lab findings when comparing a Rearfoot strike (RFS) with a forefoot strike (FFS).  Some of what I cite below will refer to Dr. Davis’ statements (Williams et al 2000 or Laughton et al 2003)  in her introduction or discussion instead of her actual data (which I can not get a hold of).

Kinematic and Kinetic Changes when moving from a rearfoot to forefoot strike



Kinematics

- forefoot strikers have increased calcaneal eversion excursions and eversion velocity (McClay and Manal 1995a/b) but end up with less maximal calcaneal eversion (aka pronation)

- the foot lands with greater ankle plantar flexion and is in greater inversion at foot strike in the Forefoot strike condition.

-increased knee internal rotation velocity in Forefoot strike conditions (Williams et al 2000)



Changes in Leg Stiffness

-According to the work of Laughton et al (2003) forefoot strikers have greater leg stiffness in general but less ankle stiffness.  They have less ankle stiffness because there is more time and range of motion for the ankle to bend. Essentially, there is more time for the ankle to spread out the joint torque during impact because the ankle moves a through a larger range with the forefoot strike (remember, the foot contacts the ground with the toes down in plantar flexion) (Laughton et al 2003).  These authors also found that the knee does not flex as much in the forefoot strike condition as in the rearfoot strike conditions (30 degrees versus about 34 degrees) therefore there is greater overall leg stiffness.

-Conversely, according to the work of Lieberman et al (2010) forefoot strikers have greater leg compliance (defined as the drop in the body’s centre of mass relative to the vertical force during the period of impact) meaning there is also greater Knee flexion as well as ankle flexion when striking with the forefoot.



Inconsistent changes in Impact Force with forefoot strike

Dr Lieberman’s website has an excellent video that shows modifications in the impact transient when striking with a forefoot in shoes.  Unfortunately, this kinetic information is not accompanied with a great deal of kinematic information.

Dr Lieberman has shown the loss of the impact transient in the following video:



However despite this decrease in the impact transient documented in the video  the one other study that investigated Shod running and changes in foot strike pattern show different results.



A review of Laughton et al (2003)

These authors compared rearfoot and forefoot strikers ground reaction forces and found the following:

-There is less peak tibial positive acceleration in the rearfoot strike condition

-The average peak vertical ground reaction force, the anteroposterior peak GRF (i.e. the braking force),and average anteroposterior GRF load rates were significantly greater for the FFS pattern than for the RFS pattern

-Average and instantaneous vertical GRF load rate (i.e. the impact transient), however, did not differ significantly between the FFS and RFS patterns.



Is this getting CONFUSING?

What I take from this is that forefoot striking can certainly decrease the loading rates on the foot/shank to a similar extent as barefoot running.  But again, it is not a SUFFICIENT condition.  I would guess that it might even be possible to train yourself to run with a heelstrike but in such a manner that you decrease your impact transient.  Work out of Dr. Davis’ lab that gives feedback to individuals on their tibial shock shoes that people can learn to run softer and decrease the impact transient. In these studies (click here) no advice is given to forefoot strike and individuals wear neutral shoes.  They are merely asked to run softer and are given feedback.

I don’t have a definitive answer for why the Laughton study shows no change in the impact transient yet Lieberman’s work shows a significant decrease in the loss of the impact transient.  My hunch is that other kinematic variables may influence the loading through the foot.   One explanation may be that if in the Laughton study there was no difference in the stride length when shifting to a forefoot strike from heel strike then this may account for the lack of a loss of the impact transient.

What is missing in this review

- research investigating whether individuals could wear standard running shoes yet still be trained to run in a manner that mimics all of the kinematics of barefoot, forefoot strike running.

-any research investigating the theory (I stress theory) that running in shoes influences plantar foot proprioception which in turn negatively influences running - this belief is very common and is always written about in a superficial  manner.  Yet there is not a lot of research investigating it.  I will reserve an opinion.

-a full body kinetic analysis comparing all the different foot conditions of running.

-long term studies investigating changing stride mechanics on injury prevalence and running efficiency

-I purposefully left out the good research investigating the POSE technique



Clinical Relevance - What I tell my patients

I think it is too early to give barefoot running the gold medal and switch everyone to minimalist shoes but I am certainly open to the idea.  Runners were still getting injured with minimalist shoes in the 1970s (see a pdf review here: Am J Sports Med-1978-James-40-50 running injury overview from 1978 surprisingly good we know nothing new)

Barefoot or forefoot strike running may be an excellent adjunct to the recreational runner as a training stimulus.  It can be used as a form of strength training or rehabilitation.

No research has looked at the impact transients with runners who run much slower than what is studied in these papers.  Most of these papers have the slowest runners running 5 minute kilometres (an 8 minute mile).  The vast majority of your recreational runners do not run this pace.  If you run at 25 minute 5 km you will probably be in the top 10% of a large race (for example, at the 2010 Goodlife Marathon 5 km a 25 minute result put you 178th out of 2721) and the top 15% if you keep that pace up for a marathon.  So, do we want to be telling all our runners to covert to a forefoot strike, minimalist shoe or barefoot based on the research of relative elites? the only correct :) answer is —-I have no idea.

Good luck piecing this all together and stay tuned for more updates.

Greg Lehman

Toronto Physiotherapist



References

Squadrone R, Gallozzi C. Biomechanical and physiological comparison of barefoot and two shod conditions in experienced barefoot runners. J Sports Med Phys Fitness. 2009 Mar;49(1):6-13.



Divert C, Mornieux G, Freychat P, Baly L, Mayer F, Belli A. Barefoot-shod running differences: shoe or mass effect? Int J Sports Med. 2008 Jun;29(6):512-8. Epub 2007 Nov 16.



Pohl MB, Buckley JG.Changes in foot and shank coupling due to alterations in foot strike pattern during running.Clin Biomech (Bristol, Avon). 2008 Mar;23(3):334-41. Epub 2007 Nov 19.



Morley JB, Decker LM, Dierks T, Blanke D, French JA, Stergiou N. Effects of varying amounts of pronation on the mediolateral ground reaction forces during barefoot versus shod running. J Appl Biomech. 2010 May;26(2):205-14.



Lieberman DE, Venkadesan M, Werbel WA, Daoud AI, D’Andrea S, Davis IS, Mang’eni RO, Pitsiladis Y.Foot strike patterns and collision forces in habitually barefoot versus shod runners. Nature. 2010 Jan 28;463(7280):531-5.



Carrie A. Laughton1, Irene McClay Davis2, and Joseph Hamill Effect of Strike Pattern and Orthotic Intervention on Tibial Shock During Running JOURNAL OF APPLIED BIOMECHANICS, 2003, 19, 153-168



Williams DS, McClay IS & Manal K: Lower extremity mechanics in runners with converted forefoot strike pattern. Journal of Applied Biomechanics, 16(2): 210-218, 2000.

McClay, I., & Manal, K. (1995a). Lower extremity kinematic comparisons between forefootand rearfoot strikers. In K.R. Williams (Ed.), Conference Proceedings: 19t Annual Meeting of the ASB, Stanford, CA (pp. 211-212). Davis, CA: UC–Davis.

McClay, I., & Manal, K. (1995b). Lower extremity kinetic comparisons between forefootand rearfoot strikers. In K.R. Williams (Ed.), Conference Proceedings: 19th Annual Meeting of the ASB, Stanford, CA (pp. 213-214). Davis, CA: UC–Davis.

7 Comments - Leave a comment
  1. Nick, PT says:

    Great info, Greg! I think that this is definitely an area that needs some more research due to the recent boom in minimalist running. I think it’s important to note as well the force produced at toe off. I realize that the title of your post is in regards to heel strike, but look at the increased force production of toe off with forefoot strike in both the barefoot and shod runner. Without the shoe support, could you see how this causes so much force to be placed through the plantar fascia, thus the met heads and calcaneus all the way up the posterior chain? I haven’t seen any research addressing this, but I’d relate it to the decreased ability to fully load the foot through heelstrike to midstance and ultimately pushing off. Thanks again for the great info!

    • Greg Lehman says:

      Hi Nick,

      Surprisingly, there is no change in the force production at toe off or the propulsive peak. This is the part of the force-time curve where you see the second hump. Most of the research I have seen this value does not change across conditions - essentially, you need the same force to push off and fly through the air. In terms of tissue loading via the plantar fascia and the posterior chain there certainly may be more of an energy absorption function during forefoot/barefoot running. This is seen in the power analysis curves that show more energy being absorbed at the ankle. This would in turn put more stress on the ankle plantar flexors and perhaps the plantar fascia. However, it can be argued that these structures are meant to do this and loading the plantar fascia kicks in the windlass mechanism to support the foot. In respect to the posterior chain we know there is anecdotal evidence suggesting that people that shift to barefoot have more calf soreness. I am unsure if this extends to the hamstrings, SI ligs and glutes (i.e. the posterior chain)

      As for load through the toes, met heads etc Squadrone et al has looked at this and they found that there is not more loading going the metatarsals, hallux, toes or midfoot with barefoot running.

      Greg

      • Nick, PT says:

        Looking at Dr. Lieberman’s videos, I agree that the peak force is equal barefoot vs. shod running with heelstrike at ~2.4 x BW. However, when you look at the forefoot strike video, the shod runner peak force at toe off is ~2.46, insignificant I would say. When you look at the forefoot strike in the barefoot runner, peak force has increased to ~2.7 x BW. Perhaps statistically insignificant, but still about a 12% increase and worth taking into account I think. I agree that the windlass mechanism should kick in and support the foot, but what about people with improper windlass function? I would say that these people should not really be running barefoot anyways.

        • Greg Lehman says:

          Hi Nick,

          I am going to email you Squadrone’s paper and a few others that looks specifically at the propulsive phase peak. There is normal stride to stride variability so I would hesitate to make a conclusion about differences in propulsion peak based on one stride.

          As for people with a faulty windlass mechanism…this is an interesting idea. I don’t know a good way to test it and wouldn’t these people still have a problem during regular heel to toe running?

          • Nick, PT says:

            Greg, thanks for the articles. I got to glance at them, especially the Squadrone and Divert articles. As you said, generalization of one video is short sighted, but I still think worthy of note when observing a subject. I’m interested to see what happens with a lower distance runner (15-20 miles/week) than the highly trained runners in these studies.

            I found interesting in the Divert article that barefoot runners produce more mechanical work as well as better efficiency but no change in VO2. Am I correct to attribute the increased work to the decreased stride length and thus more strides to complete a certain distance? Interesting that this does not increase VO2.

            As far as windlass, I’ll admit that I am not an expert on the subject. Would a static standing assessment and gait assessment of subtalar positioning at least give you an idea of an over-pronator? Measurements of forefoot (FF) and rearfoot (RF) varus/valgus could provide more objective measures. I think that subtalar joint position and FF/RF positioning might impact a recommendation as far as barefoot vs shod as we already make shoe recommendations based on subtalar foot positioning. Again, I might be off base on this, but I’m interested in your thoughts!

          • Greg Lehman says:

            Hi Nick,

            I think that the research on static measures of foot pronation (navicular drop) and arch height don’t correlate with dynamic measures of calcaneal eversion. I also think that the current recommendations for shoes may also be faulty (Richards et al British Journal of Sports Medicine 2009).

            One of the arguments for advising some one who is an “overpronator”, if that is even a problem, is to run with minimalist shoes or barefoot as there is less peak pronation during gait.

            Greg
